Instrumentation Tube Fittings

Instrumentation Tube Female Connector is a precision compression fitting designed to connect instrumentation tubing to female threaded ports in high-pressure fluid and gas systems. It features a double ferrule compression end on one side and a female threaded connection on the other, providing a secure, leak-proof joint with excellent mechanical strength. The fitting ensures reliable sealing, minimizes vibration-induced loosening, and enables safe operation in demanding industrial environments.

Manufactured from premium-quality SS 316, SS 316L, SS 304, brass, or duplex stainless steel, Instrumentation Tube Female Connectors are engineered for superior corrosion resistance, pressure integrity, and long service life. Their precision-machined threads and ferrules provide easy installation and consistent performance, making them ideal for instrumentation, hydraulic, pneumatic, and process control applications.

• Product Type: Instrumentation Tube Female Connector
• Material: SS 316 / SS 316L / SS 304 / Brass / Duplex Stainless Steel
• Connection Type: Tube x Female Thread
• Tube Size (OD): 1/8" to 1"
• Female Thread Size: 1/8" to 1"
• Thread Type: NPT / BSP / BSPT
• End Connection: Double Ferrule Compression x Female Thread
• Working Pressure: Up to 10,000 PSI
• Temperature Range: -54°C to 400°C

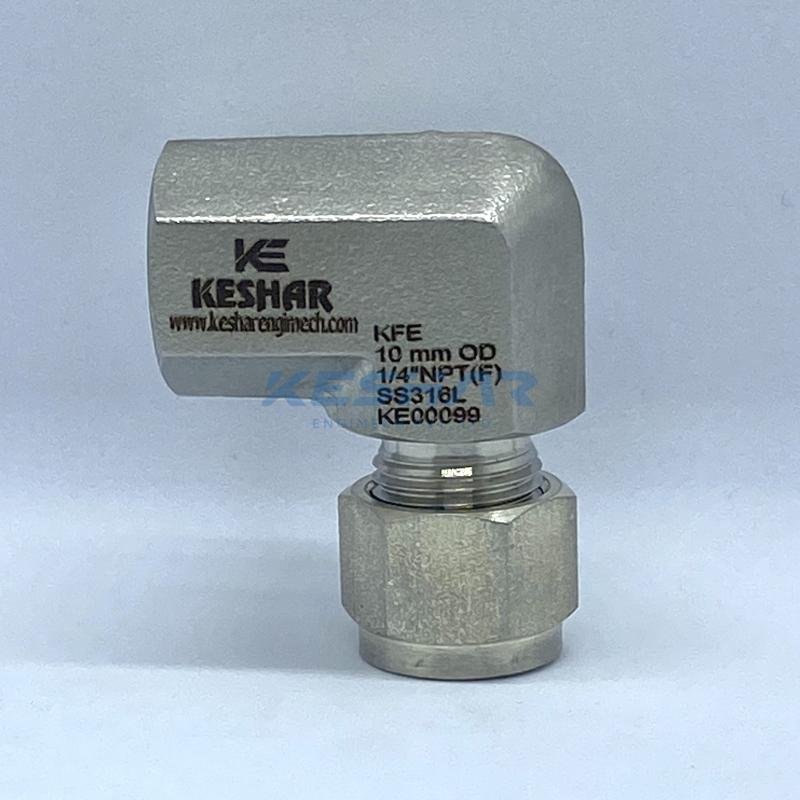

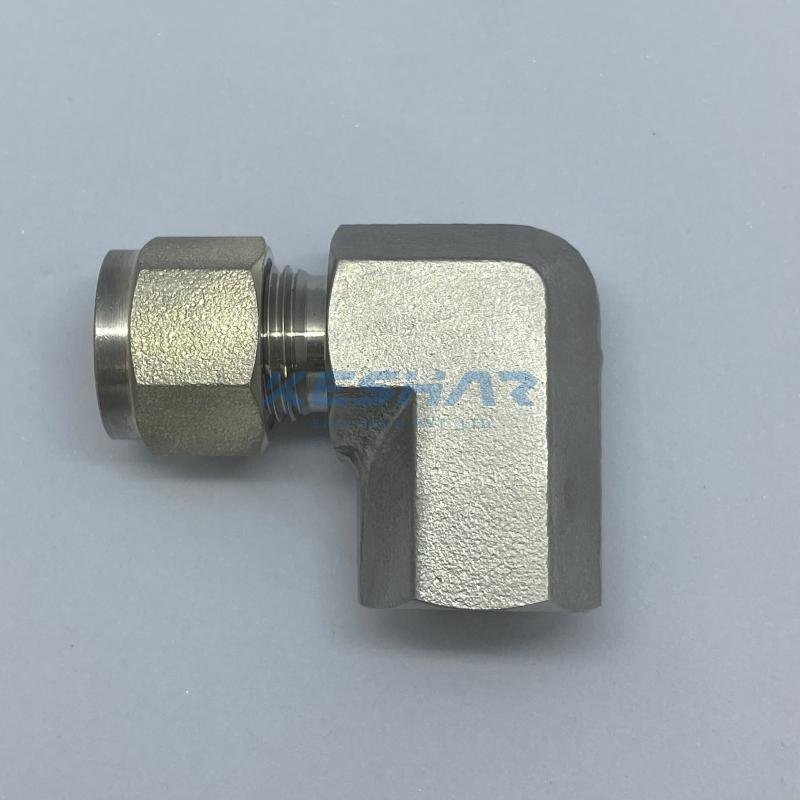

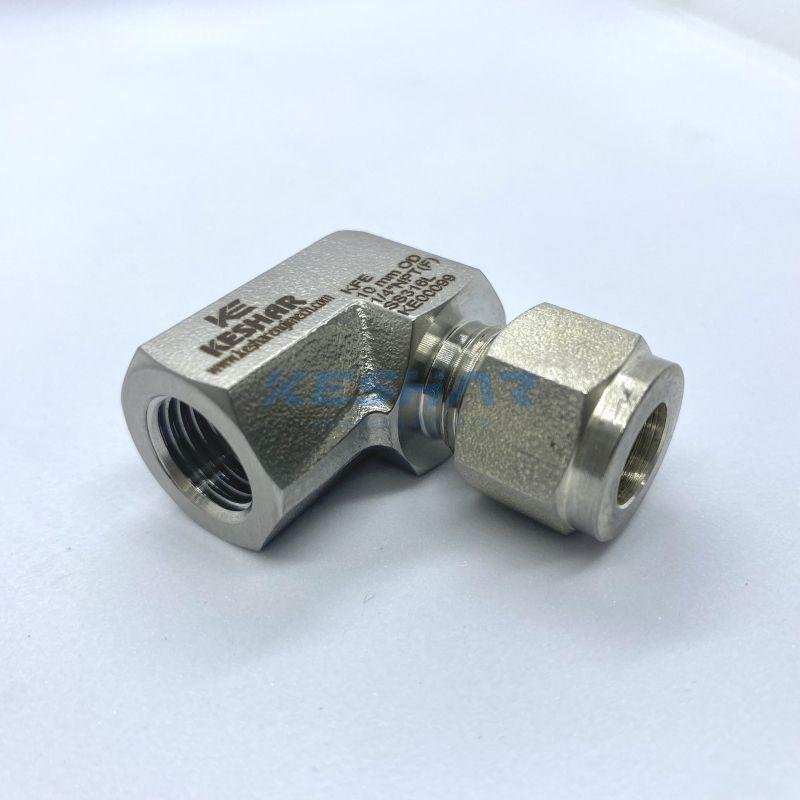

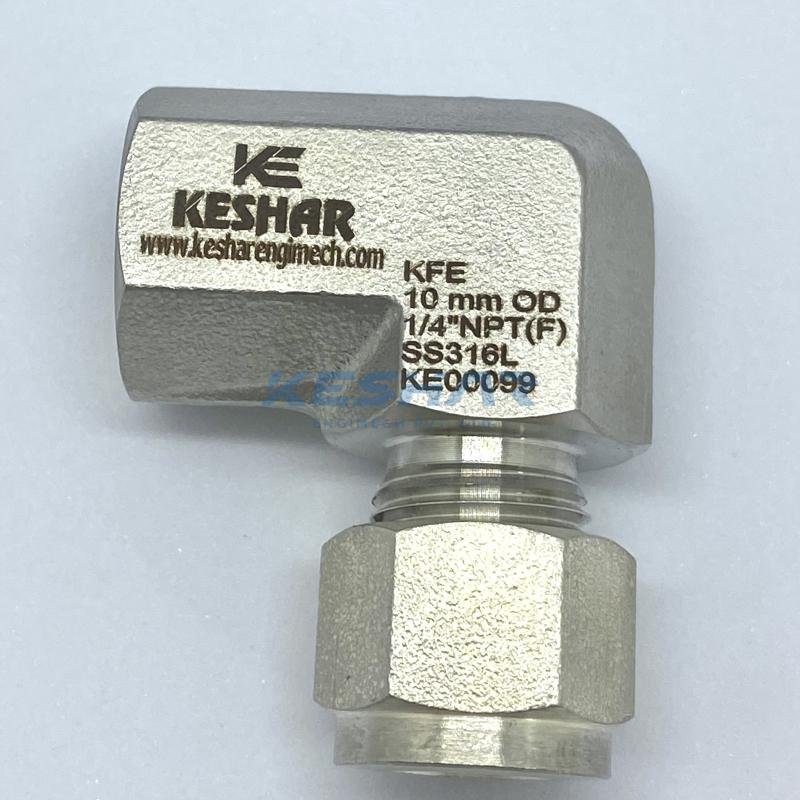

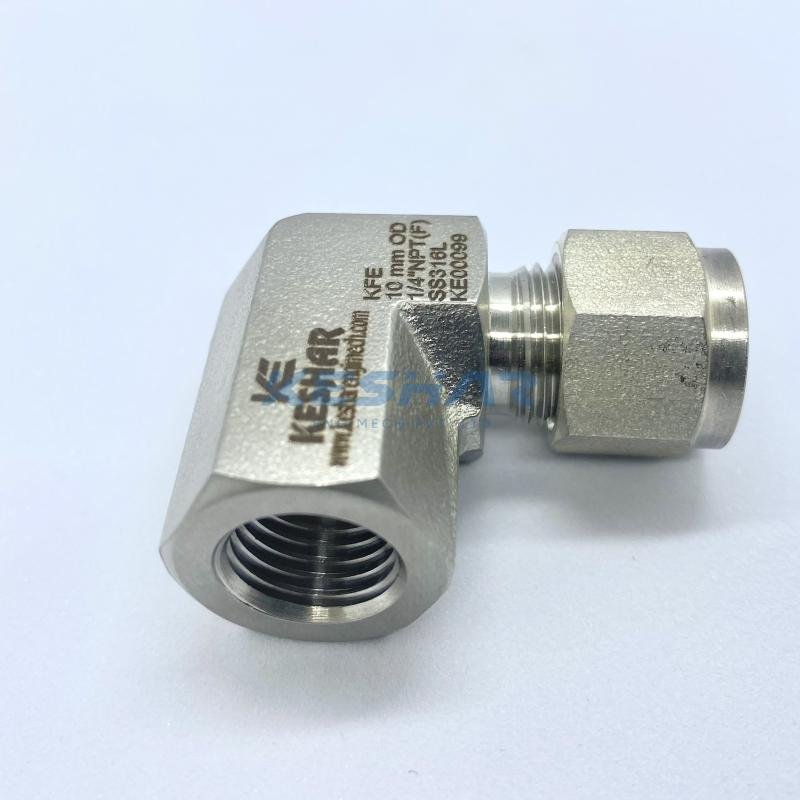

Instrumentation Tube Female Elbow is a precision-engineered compression fitting designed to connect instrumentation tubing to a female threaded port at a 90° angle. It provides a secure, leak-proof connection while allowing smooth directional change of fluid or gas flow in instrumentation, hydraulic, pneumatic, and process control systems. The double ferrule compression design ensures excellent tube grip, vibration resistance, and dependable sealing under high-pressure operating conditions.

Manufactured from premium-grade SS 316, SS 316L, SS 304, brass, or duplex stainless steel, Instrumentation Tube Female Elbows are engineered for superior corrosion resistance, mechanical strength, and long service life. Their compact design simplifies tubing installation in confined spaces while maintaining system integrity and reducing potential leak points. These fittings are widely used in critical industrial applications where safety, precision, and reliability are essential.

• Product Type: Instrumentation Tube Female Elbow
• Material: SS 316 / SS 316L / SS 304 / Brass / Duplex Stainless Steel
• Connection Type: Tube x Female Thread (90° Elbow)
• Tube Size (OD): 1/8" to 1"
• Female Thread Size: 1/8" to 1"
• Thread Type: NPT / BSP / BSPT
• End Connection: Double Ferrule Compression x Female Thread
• Working Pressure: Up to 10,000 PSI
• Temperature Range: -54°C to 400°C

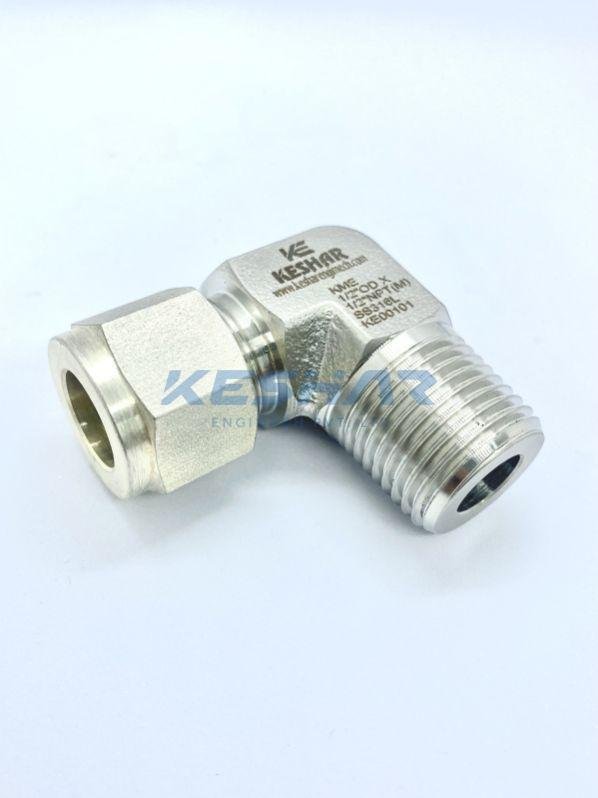

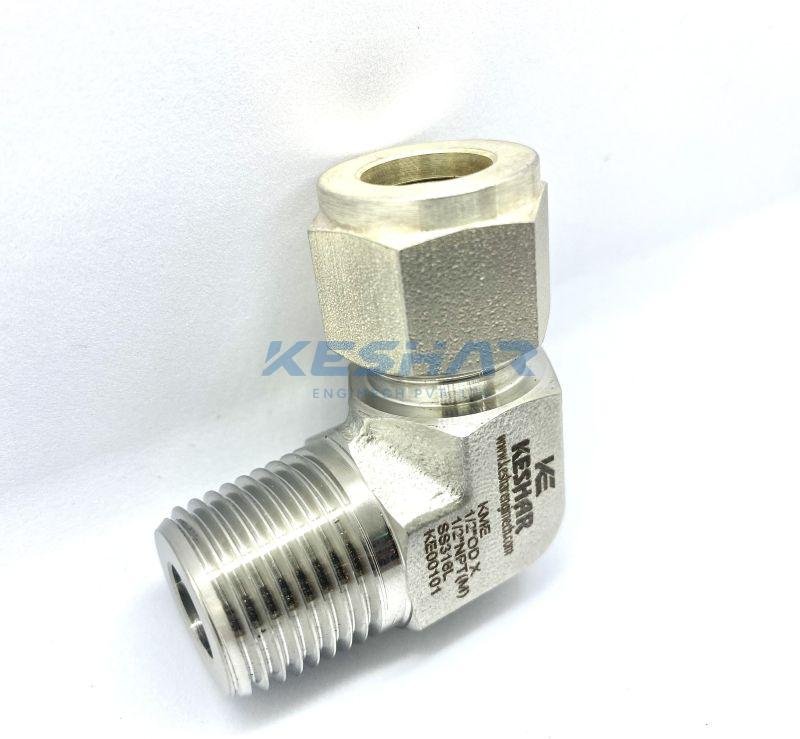

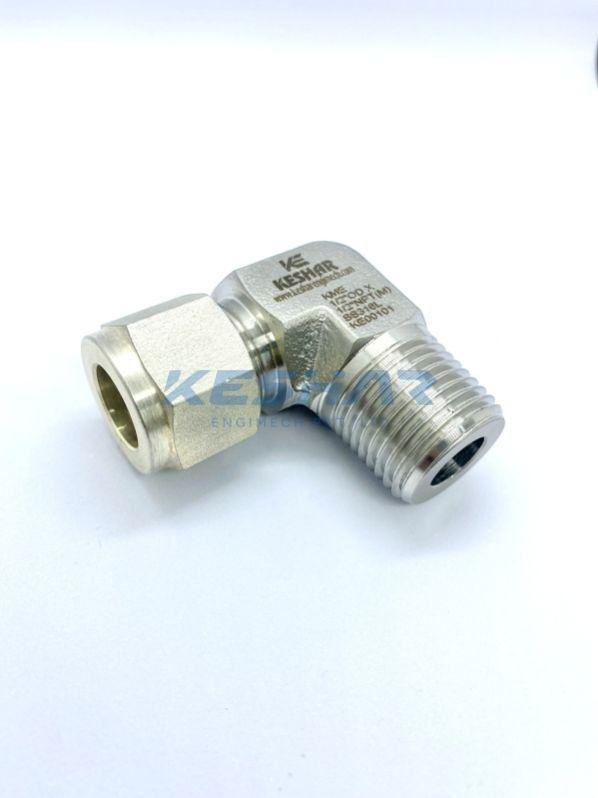

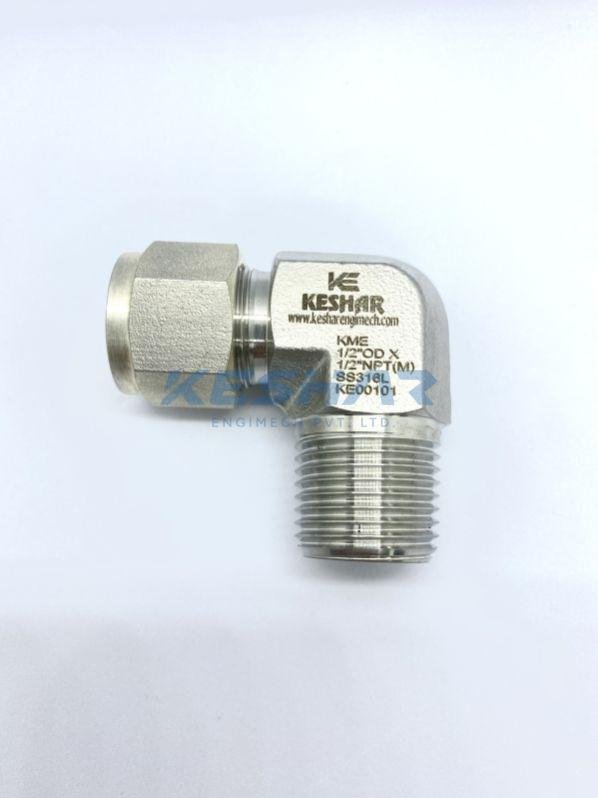

An Instrumentation Tube Male Elbow is a precision-engineered fitting designed to connect a tube to a female threaded port at a 90-degree angle, ensuring smooth directional flow and secure connection in instrumentation systems. It combines a compression end for tubing with a male threaded end (NPT/BSP) for easy integration into pipelines or equipment.

Manufactured from high-quality materials such as SS304, SS316, and SS316L, these fittings provide excellent corrosion resistance, high pressure capability, and durability in demanding industrial environments.

 Technical Specifications (Typical)

• Material: SS304 / SS316 / SS316L / Brass
• Size Range: 1/8" to 1" (Tube OD)
• End Connection: Compression x Male Thread (NPT/BSP)
• Type: 90° Male Elbow
• Pressure Rating: Up to 6000 PSI
• Temperature Range: -20°C to 450°C

Applications

• Instrumentation tubing systems
• Pressure and temperature measurement lines
• Hydraulic and pneumatic systems
• Oil & gas pipelines
• Chemical and process industries

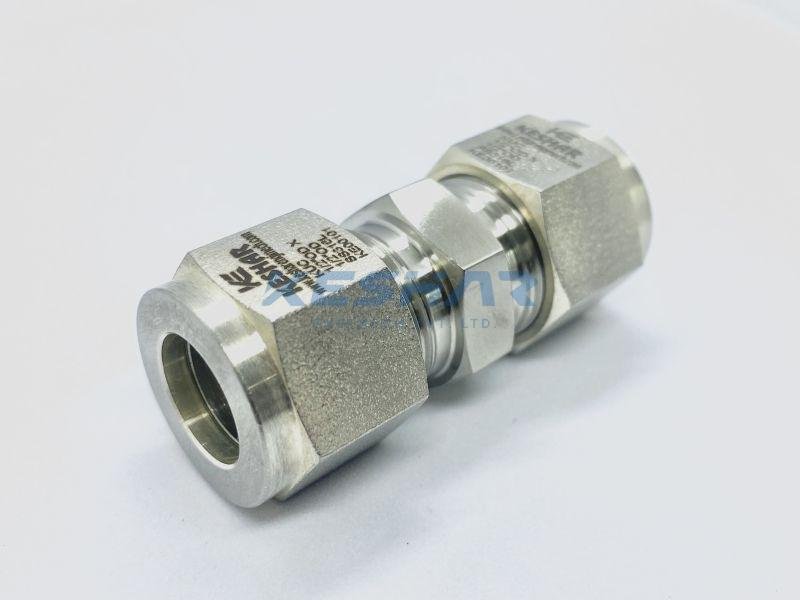

A Straight Union is a pipe fitting used to connect two tubes or pipes in a straight line, ensuring a secure and leak-proof joint while allowing easy disconnection for maintenance. Its union design enables quick assembly and dismantling without rotating the tubing, making it highly convenient for installation and servicing.

Manufactured using premium-grade materials such as SS304, SS316, and SS316L, straight unions offer excellent corrosion resistance, high strength, and durability in demanding industrial environments.

Technical Specifications (Typical)

• Material: SS304 / SS316 / SS316L / Brass
• Size Range: 1/8" to 1" (or as required)
• End Connection: NPT / BSP / Compression
• Type: Straight Union
• Pressure Rating: Up to 6000 PSI
• Temperature Range: -20°C to 450°C

Applications

• Instrumentation tubing systems
• Hydraulic and pneumatic lines
• Oil & gas pipelines
• Chemical and process industries
• Water and fluid transfer systems

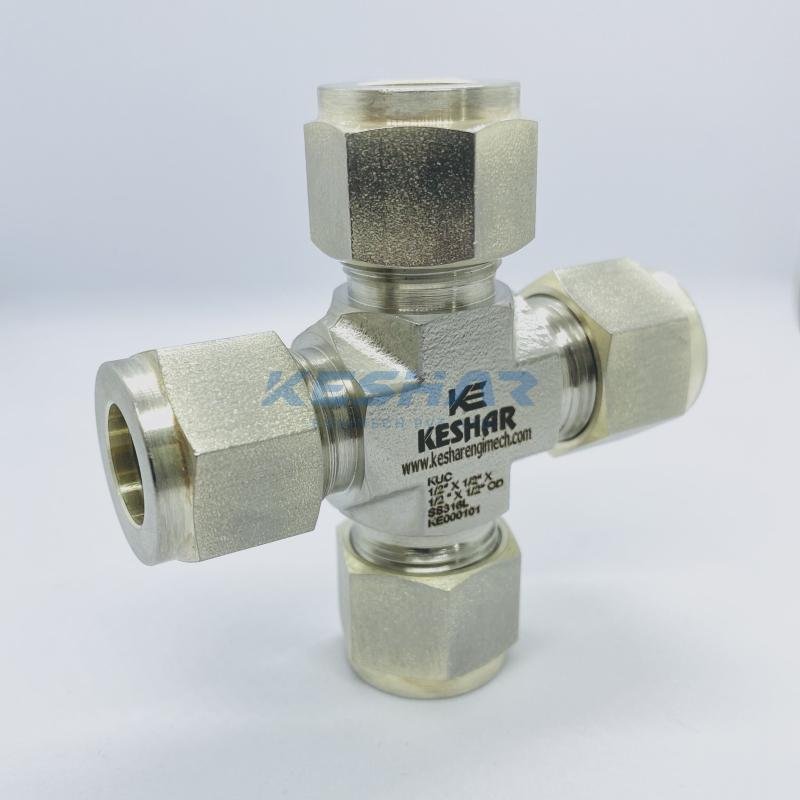

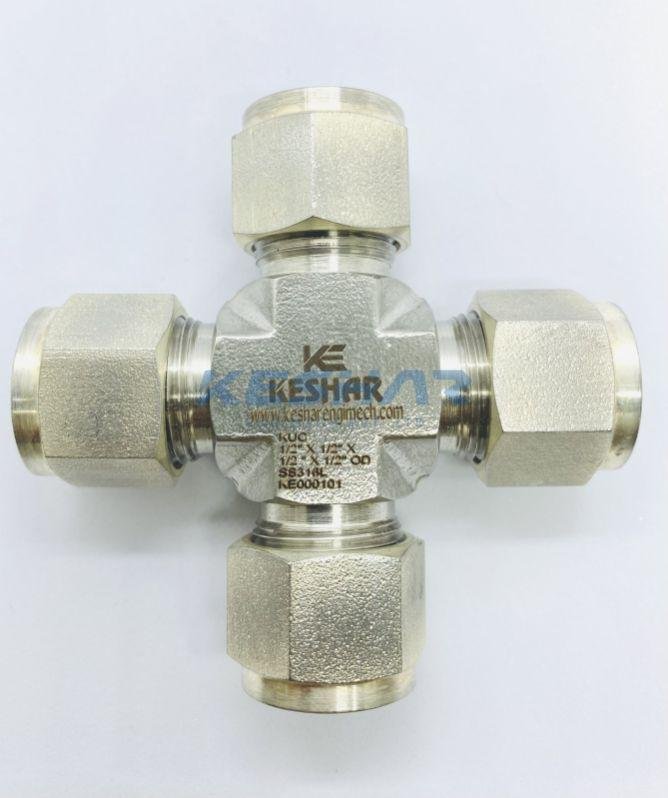

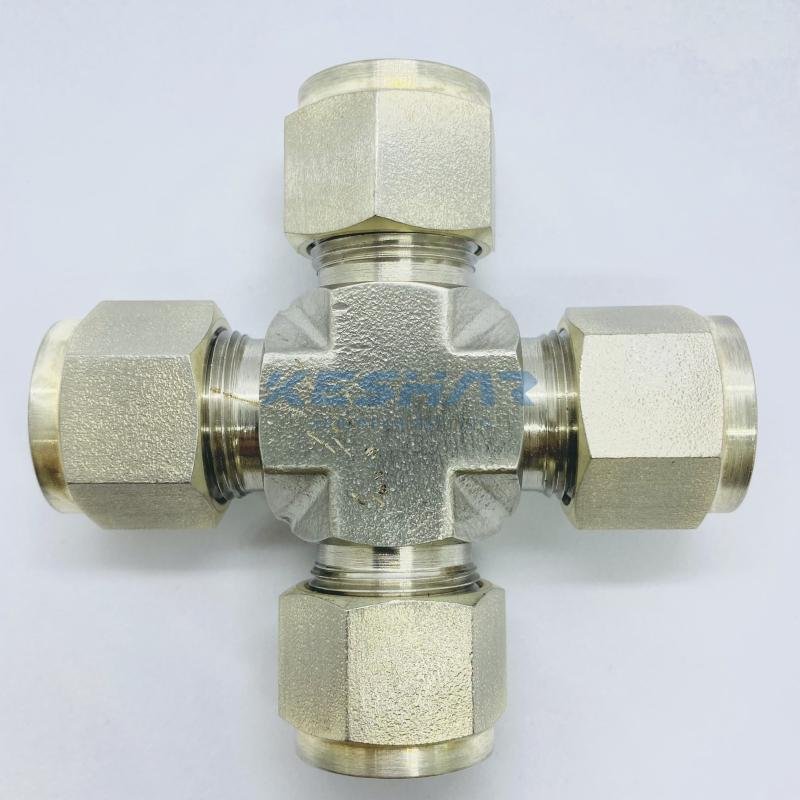

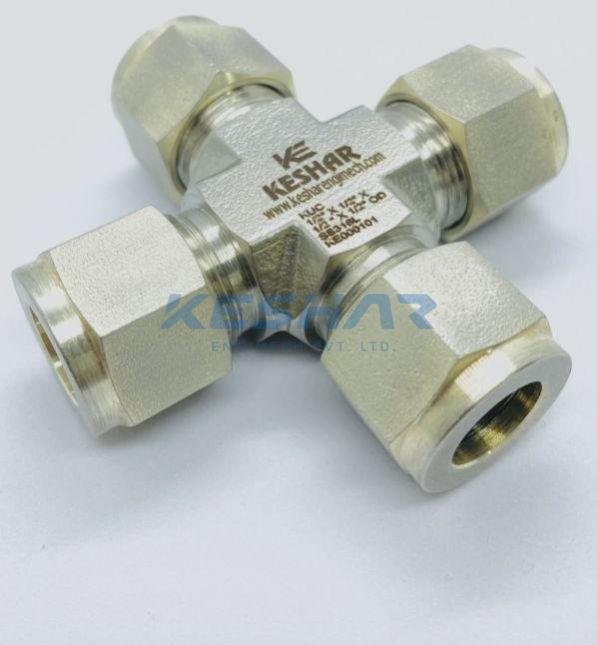

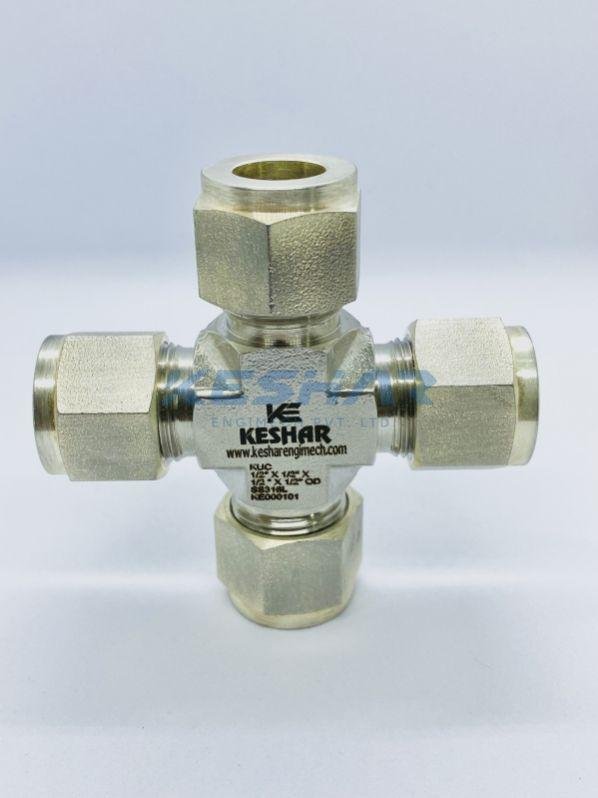

A Union Cross is a four-way pipe fitting designed to connect four tubes or pipes in a cross (90°) configuration, allowing fluid flow in multiple directions. It combines the functionality of a cross fitting with union ends, enabling easy installation, dismantling, and maintenance without disturbing the entire pipeline.

Manufactured from high-quality materials such as SS304, SS316, and SS316L, union cross fittings offer excellent corrosion resistance, high strength, and leak-proof performance in demanding industrial environments.

Technical Specifications (Typical)

• Material: SS304 / SS316 / SS316L / Brass
• Size Range: 1/8" to 1" (or as required)
• End Connection: NPT / BSP / Compression
• Type: 4-Way Union Cross
• Pressure Rating: Up to 6000 PSI
• Temperature Range: -20°C to 450°C

Applications

• Instrumentation tubing systems
• Hydraulic and pneumatic lines
• Oil & gas distribution systems
• Chemical and process industries

A Union Elbow is a type of pipe fitting designed to connect two tubes or pipes at a 90-degree angle, while also allowing easy disconnection and reassembly without disturbing the entire pipeline. It combines the functionality of an elbow and a union, making it ideal for systems requiring frequent maintenance or alignment adjustments.

Manufactured using premium materials such as SS304, SS316, and SS316L, union elbows offer excellent corrosion resistance, high strength, and leak-proof performance in demanding industrial environments.

Technical Specifications (Typical)

• Material: SS304 / SS316 / SS316L / Brass
• Size Range: 1/8" to 1" (or as required)
• End Connection: NPT / BSP / Compression
• Type: 90° Union Elbow
• Pressure Rating: Up to 6000 PSI

Key Features

• 90° angle connection with union flexibility
• Easy installation and dismantling
• Leak-proof and secure sealing
• Corrosion-resistant stainless steel construction

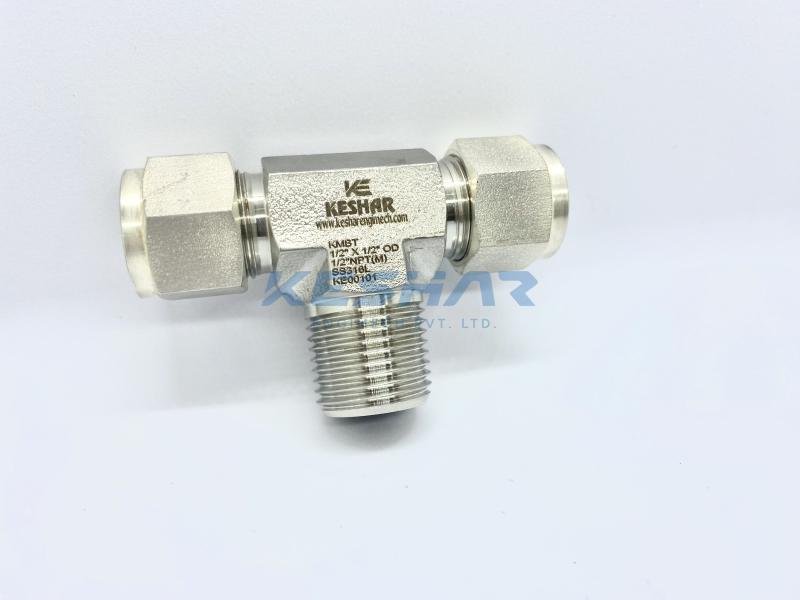

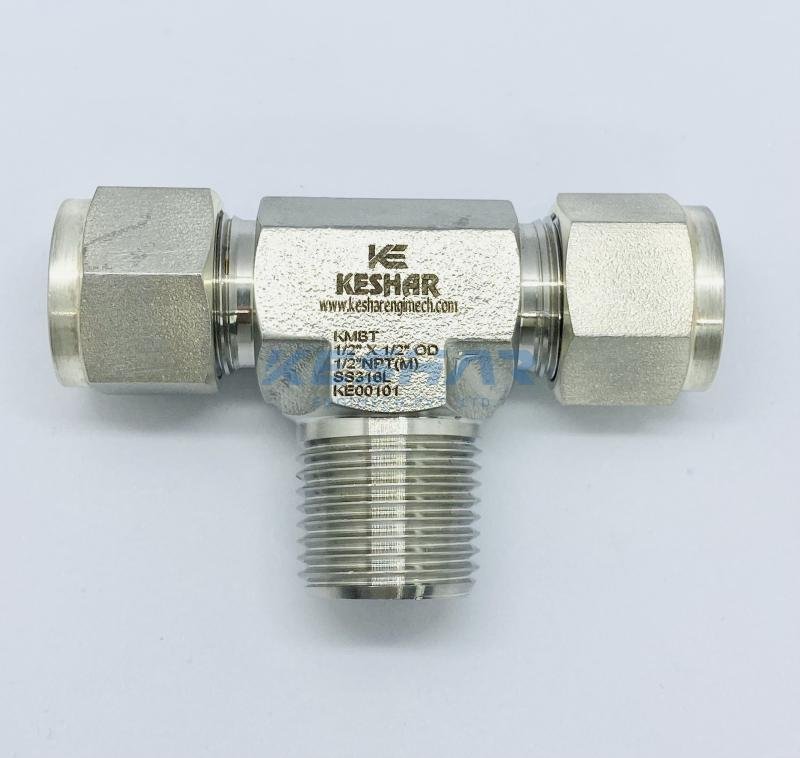

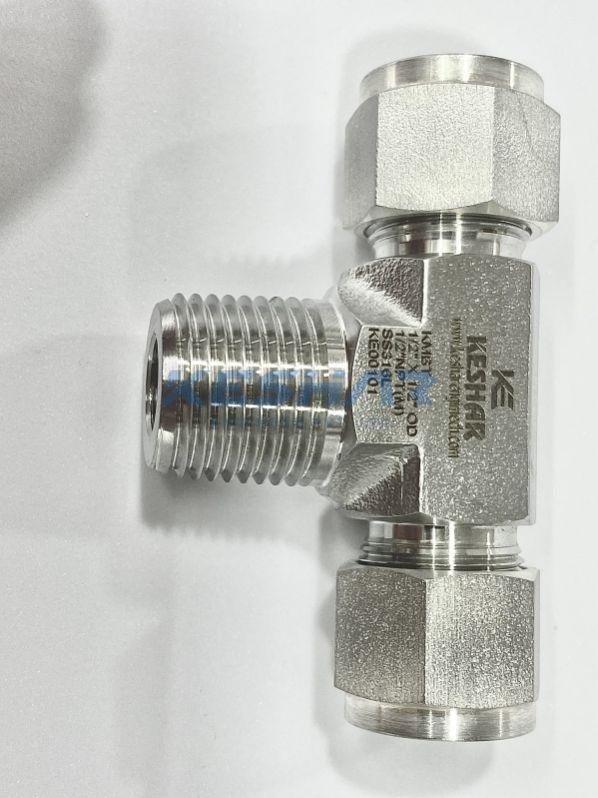

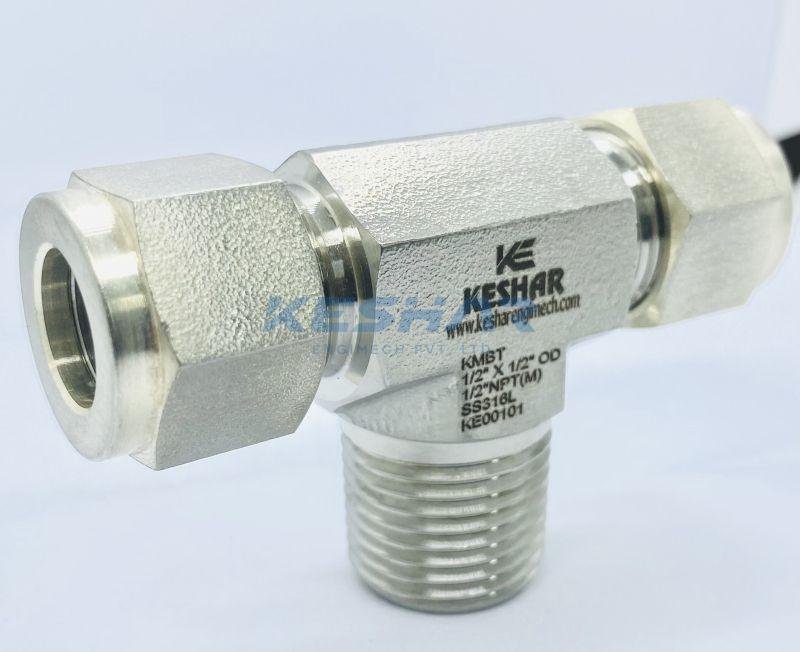

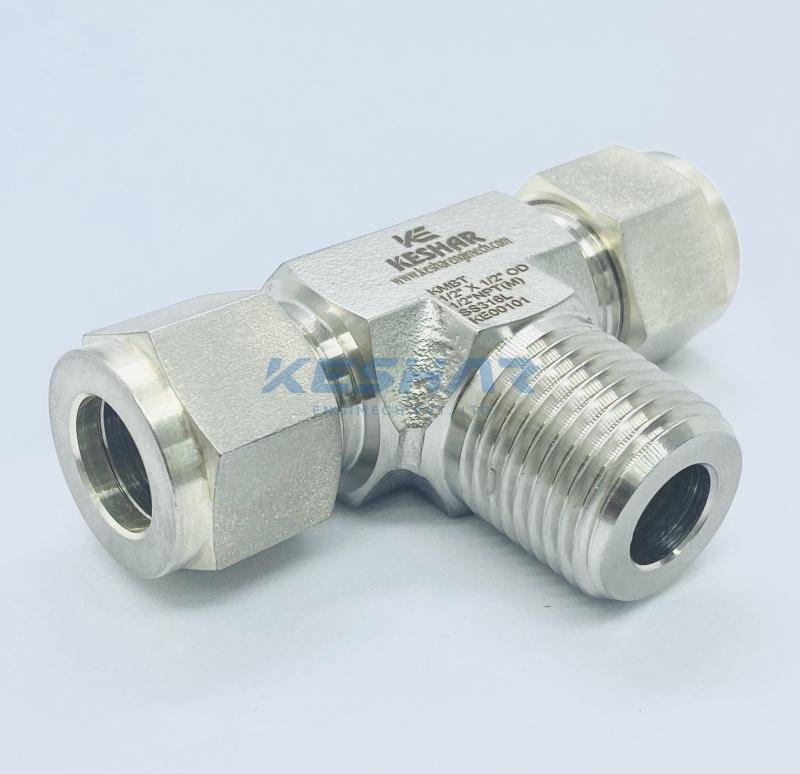

A Male Run Tee is a specialized tube fitting designed to connect three lines, where the run (straight path) has male threaded ends and the branch provides an outlet for flow diversion. It is widely used in instrumentation and piping systems for branch connections while maintaining a secure threaded joint.

Manufactured using high-quality materials such as SS304, SS316, and SS316L, male run tees offer excellent corrosion resistance, high pressure handling, and long service life in demanding industrial environments.

Technical Specifications (Typical)

• Material: SS304 / SS316 / SS316L / Brass
• Size Range: 1/8" to 1" (or as required)
• End Connection: Male Thread (NPT/BSP) + Compression / Female
• Type: Male Run Tee
• Pressure Rating: Up to 6000 PSI
• Temperature Range: -20°C to 450°C

Applications

• Instrumentation tubing systems
• Hydraulic and pneumatic lines
• Oil & gas pipelines
• Chemical and process industries

A Tube Plug is a sealing component used to close the end of a tube or pipe, preventing leakage and ensuring safe operation in fluid systems. It is commonly used in instrumentation and piping applications where temporary or permanent sealing of unused ports or tube ends is required.

Manufactured from high-quality materials such as SS304, SS316, SS316L, and Brass, tube plugs offer excellent corrosion resistance, high pressure tolerance, and durability in demanding industrial environments.

Technical Specifications (Typical)

• Material: SS304 / SS316 / SS316L / Brass
• Size Range: 1/8" to 1" (or as required)
• End Connection: Compression / Threaded (NPT/BSP)
• Type: Tube Plug / Blanking Plug
• Pressure Rating: Up to 6000 PSI
• Temperature Range: -20°C to 450°C

Applications

• Instrumentation tubing systems
• Hydraulic and pneumatic lines
• Oil & gas pipelines
• Chemical and process industries
• Pressure testing and maintenance

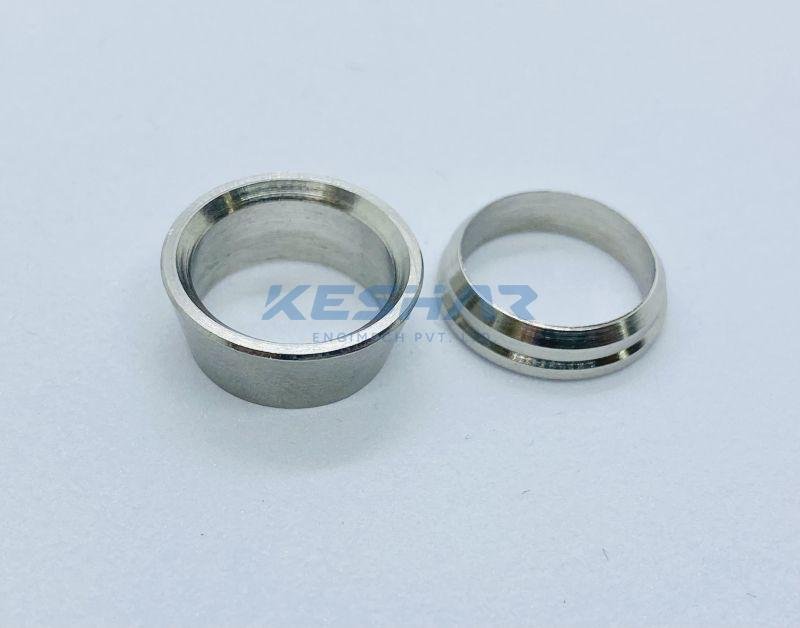

Front & Back Ferrules are precision-engineered components used in double ferrule compression tube fittings to create a secure, leak-proof, and vibration-resistant connection in instrumentation systems. The front ferrule forms the primary seal between the fitting body and the tubing, while the back ferrule grips the tube firmly, providing mechanical support and preventing tube pull-out. Together, they ensure reliable sealing and superior performance under high-pressure and high-temperature operating conditions.

Manufactured from premium-grade SS 316, SS 316L, SS 304, brass, or other corrosion-resistant alloys, Front & Back Ferrules are precision machined to provide consistent sealing, excellent tube grip, and long service life. Their advanced design minimizes installation torque, enhances reusability, and maintains tubing integrity, making them ideal for critical instrumentation, hydraulic, pneumatic, and process control applications.

• Product Type: Front & Back Ferrule
• Material: SS 316 / SS 316L / SS 304 / Brass
• Type: Double Ferrule Compression System
• Compatible Tube Size: 1/16" to 2" (2 mm to 50 mm)
• Tube Material: Stainless Steel, Copper, Alloy Steel, and other compatible tubing
• Working Pressure: Up to 10,000 PSI
• Temperature Range: -54°C to 400°C
• Finish: Precision Machined, Passivated
