Instrumentation Pipe Fittings

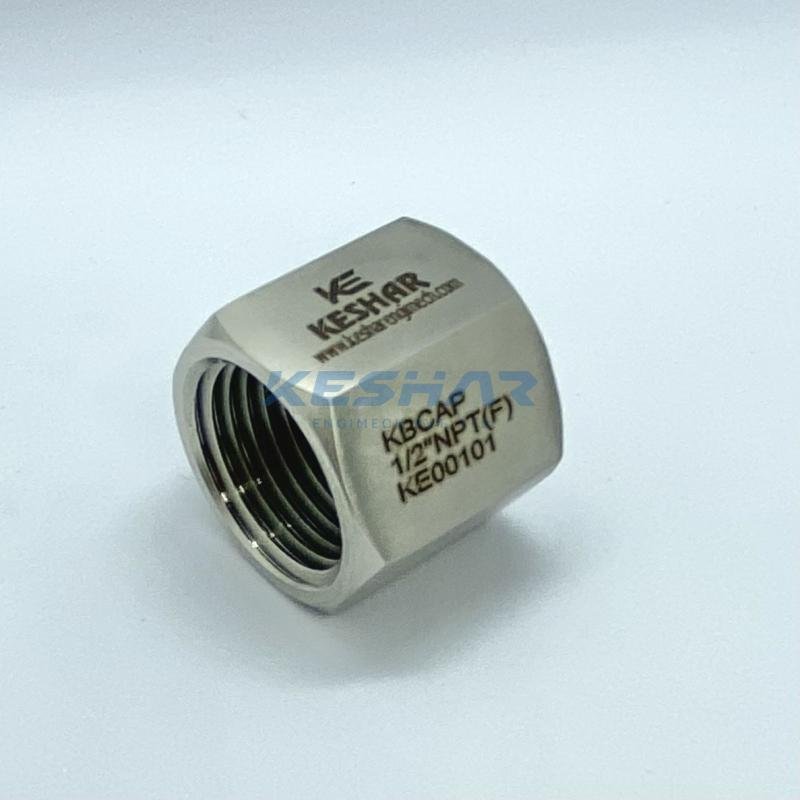

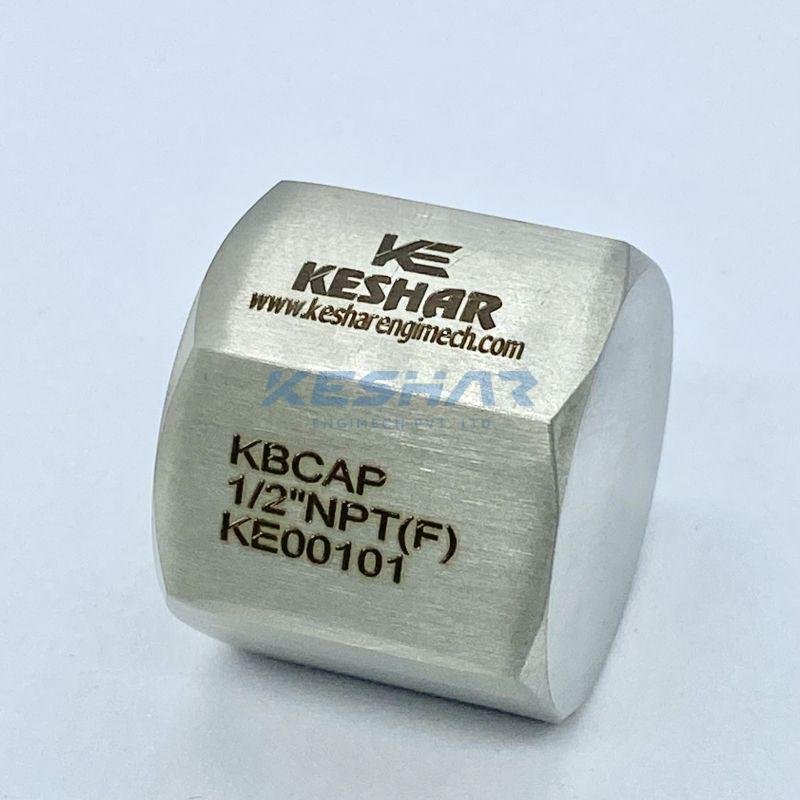

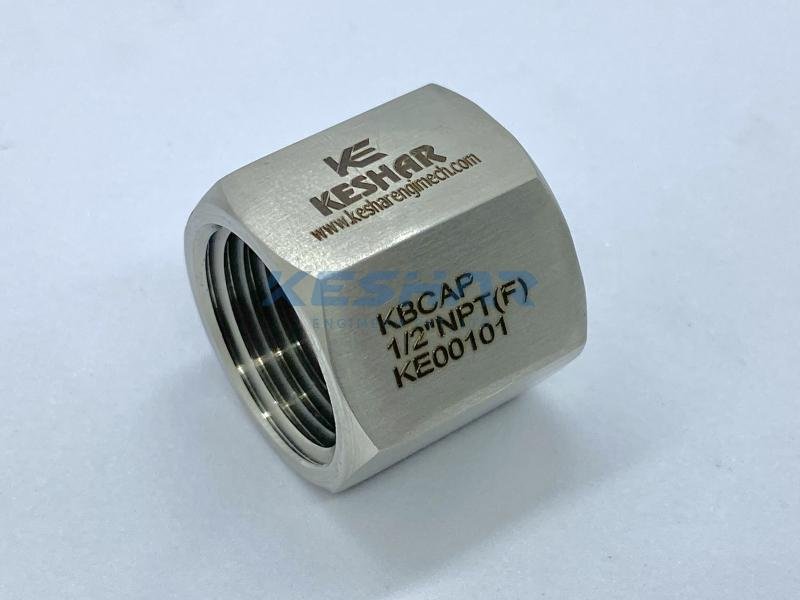

Instrumentation Pipe Female Cap is a precision-engineered threaded pipe fitting designed to securely close or terminate the end of a male-threaded pipe, valve, manifold, or instrumentation port. It features an internal female thread that provides a tight, leak-proof seal, protecting the system from leakage, contamination, and pressure loss. Female caps are commonly used during system installation, maintenance, testing, and future line expansion in high-pressure instrumentation and process piping applications.

Manufactured from premium-grade SS 316, SS 316L, SS 304, carbon steel, brass, duplex stainless steel, Monel, Hastelloy, or alloy steel, Instrumentation Pipe Female Caps offer exceptional corrosion resistance, mechanical strength, and durability. Precision-machined internal threads ensure accurate engagement and reliable sealing in demanding industrial environments.

Instrumentation Pipe Female Cross is a precision-engineered four-way threaded pipe fitting designed to connect four male-threaded pipes, valves, gauges, or instrumentation components at 90° angles. It features female threads on all four ports, allowing efficient distribution or collection of liquids and gases in high-pressure instrumentation and process piping systems. The robust design provides a secure, leak-proof connection while minimizing pressure loss and ensuring reliable system performance.

Manufactured from premium-grade SS 316, SS 316L, SS 304, carbon steel, brass, duplex stainless steel, Monel, Hastelloy, or alloy steel, Instrumentation Pipe Female Cross fittings offer excellent corrosion resistance, high mechanical strength, and long service life. Precision-machined internal threads ensure accurate fitment and dependable sealing in demanding industrial applications.

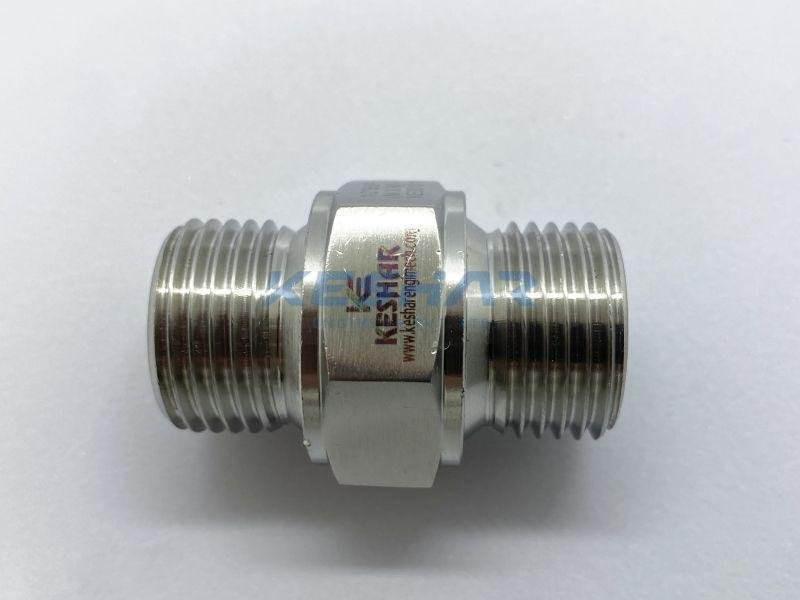

Instrumentation Pipe Hex Nipple is a precision-engineered threaded pipe fitting designed to connect two female-threaded components in high-pressure instrumentation and process piping systems. It features male threads on both ends with an integral hexagonal section at the center, allowing easy tightening and removal using a standard wrench or spanner. The hex body provides improved torque transmission and facilitates installation in confined spaces without damaging the threaded ends.

Manufactured from premium-grade SS 316, SS 316L, SS 304, carbon steel, brass, duplex stainless steel, Monel, Hastelloy, or alloy steel, Instrumentation Pipe Hex Nipples offer exceptional corrosion resistance, mechanical strength, and leak-proof performance. Precision-machined threads ensure accurate fitment and dependable sealing, making them suitable for high-pressure and high-temperature industrial applications.

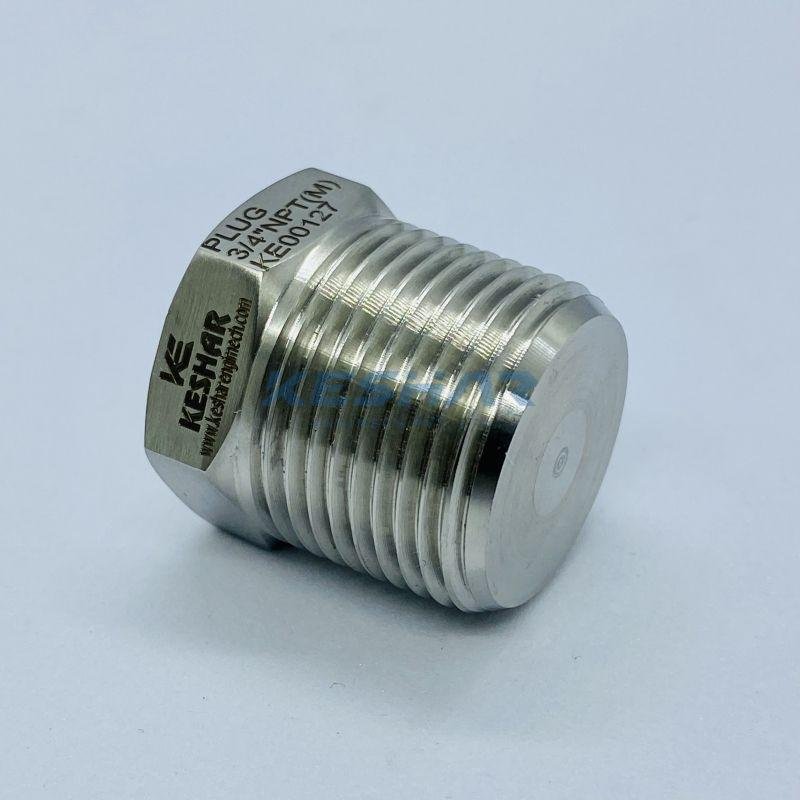

Instrumentation Pipe Hex Plug is a precision-engineered threaded fitting designed to securely seal the end of a female-threaded pipe, valve, manifold, or instrumentation port. It features a male threaded connection with an external hexagonal head that allows easy installation and removal using standard spanners or wrenches. The hex plug provides a reliable, leak-proof seal and is widely used for closing unused ports during system installation, testing, maintenance, or future expansion.

Manufactured from premium-quality SS 316, SS 316L, SS 304, carbon steel, brass, duplex stainless steel, or alloy steel, Instrumentation Pipe Hex Plugs offer excellent corrosion resistance, high mechanical strength, and outstanding pressure performance. Precision-machined threads ensure accurate engagement and dependable sealing in high-pressure instrumentation, hydraulic, pneumatic, and process control systems.

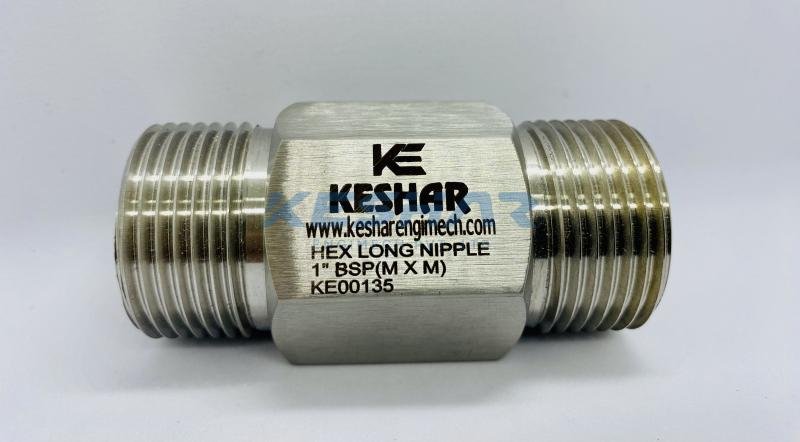

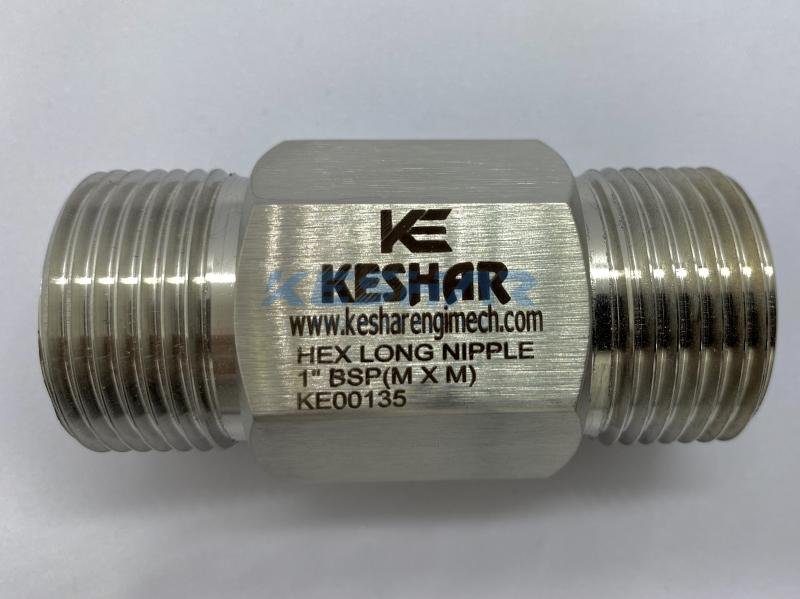

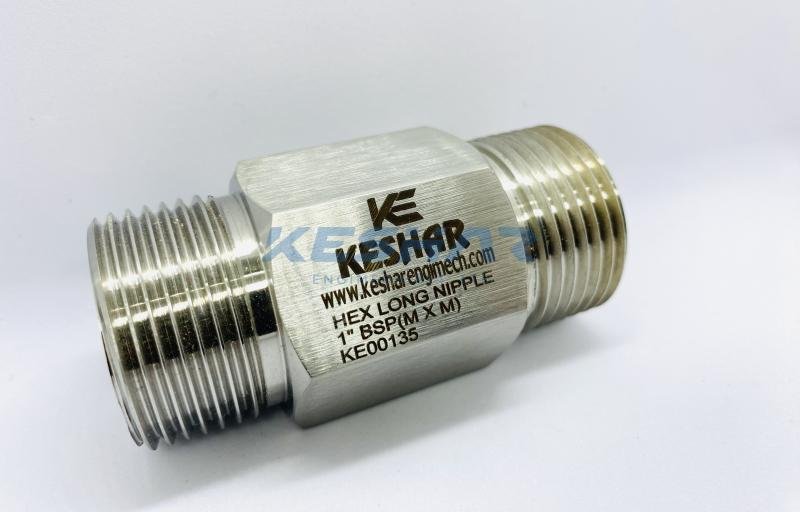

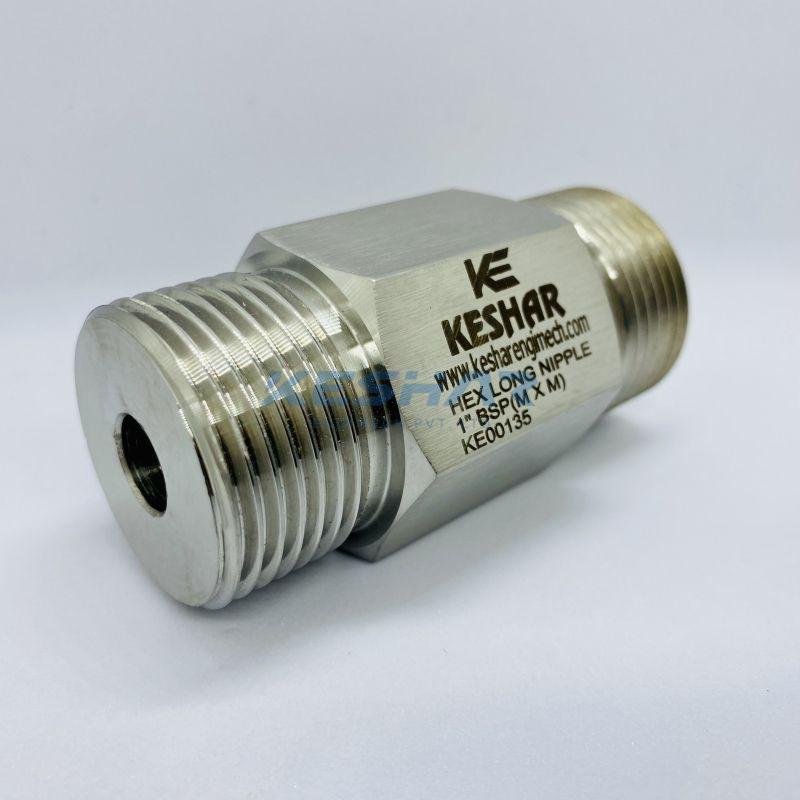

Instrumentation Pipe Hex Long Nipple is a precision-machined threaded pipe fitting designed to connect two female-threaded components while providing an extended connection length for instrumentation and process piping systems. It features male threads on both ends with an integrated hexagonal section at the center, allowing easy tightening and removal using standard spanners or wrenches. The extended body design offers improved accessibility, easier installation in confined spaces, and greater flexibility in pipe alignment.

Manufactured from premium-grade SS 316, SS 316L, SS 304, carbon steel, brass, duplex stainless steel, or alloy steel, Instrumentation Pipe Hex Long Nipples deliver exceptional corrosion resistance, mechanical strength, and leak-tight performance. Precision-machined threads ensure reliable sealing under high-pressure and high-temperature operating conditions, making them ideal for instrumentation, hydraulic, pneumatic, oil & gas, and process control applications.

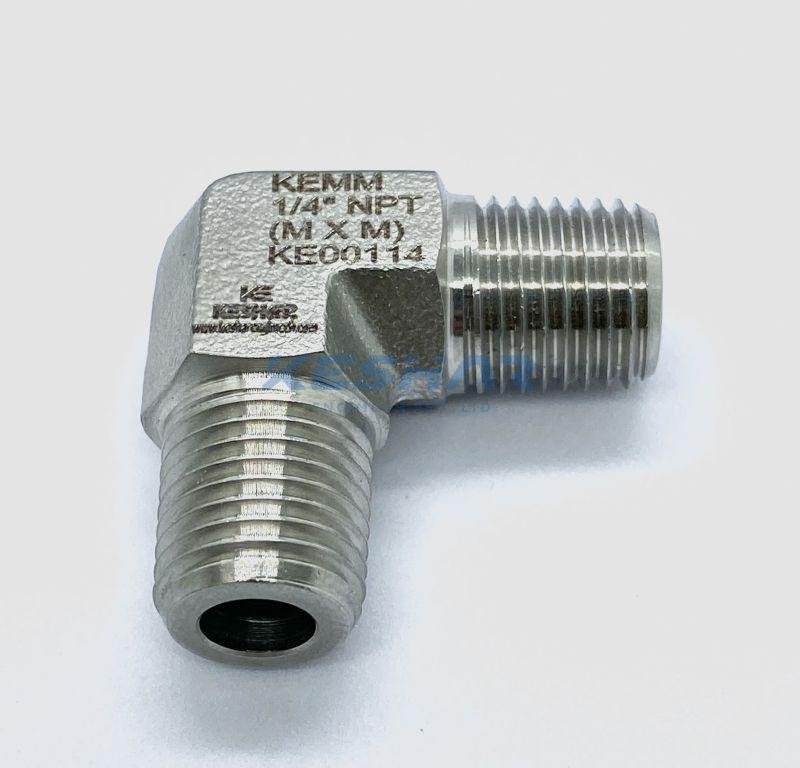

Instrumentation Pipe Male Elbow is a precision-engineered 90° threaded fitting designed to connect piping systems while changing the direction of flow with minimal pressure loss. It features male threaded ends that provide a secure, leak-proof connection for high-pressure instrumentation, hydraulic, pneumatic, and process control applications. Its compact design allows easy installation in confined spaces while maintaining excellent mechanical strength and sealing performance.

Manufactured from premium-grade SS 316, SS 316L, SS 304, carbon steel, brass, duplex stainless steel, or alloy steel, Instrumentation Pipe Male Elbows offer outstanding corrosion resistance, high-pressure capability, and long service life. Precision-machined threads ensure accurate fitment and dependable performance in demanding industrial environments.

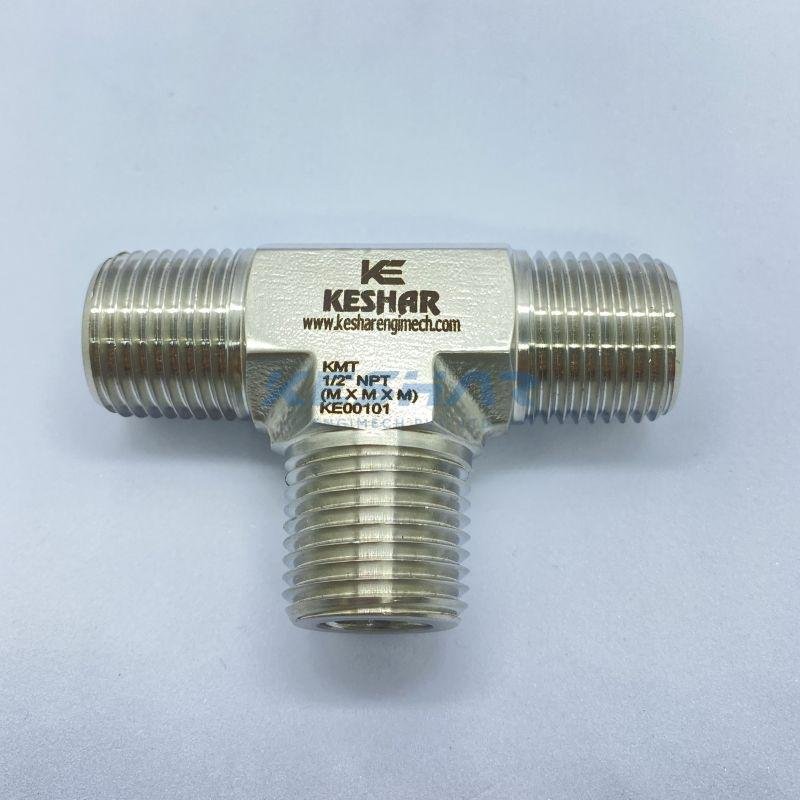

A Male Tee is a precision-engineered three-way threaded pipe fitting designed to connect three female-threaded components in a T-configuration. It features male threaded ends on all three ports, allowing fluid or gas to flow through the main line while creating a 90° branch connection. Its compact design eliminates the need for additional adapters, making installation faster, simpler, and more reliable in high-pressure piping and instrumentation systems.

Manufactured from premium-grade SS 316, SS 316L, SS 304, carbon steel, brass, duplex stainless steel, or alloy steel, Male Tees provide excellent corrosion resistance, mechanical strength, and leak-tight performance. Precision-machined threads ensure secure engagement and dependable sealing in demanding industrial environments including instrumentation, hydraulic, pneumatic, oil & gas, and process control applications.

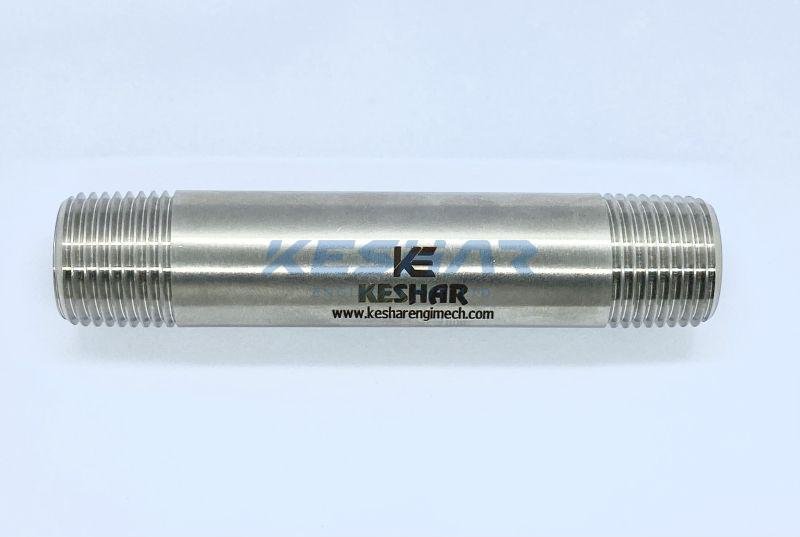

A Pipe Nipple is a short length of pipe with male threads on one or both ends, designed to connect two female-threaded fittings, valves, or equipment in piping and instrumentation systems. It provides a secure and leak-proof threaded connection for the transfer of liquids, gases, steam, and other process media. Pipe nipples are available in various lengths, schedules, thread types, and materials to suit a wide range of industrial applications.

Manufactured from premium-grade SS 316, SS 316L, SS 304, carbon steel, alloy steel, brass, and duplex stainless steel, pipe nipples offer excellent mechanical strength, corrosion resistance, and durability. Precision-machined threads ensure easy installation, reliable sealing, and long service life under high-pressure and high-temperature operating conditions. They are extensively used in instrumentation, hydraulic, pneumatic, chemical, oil & gas, and process industries.

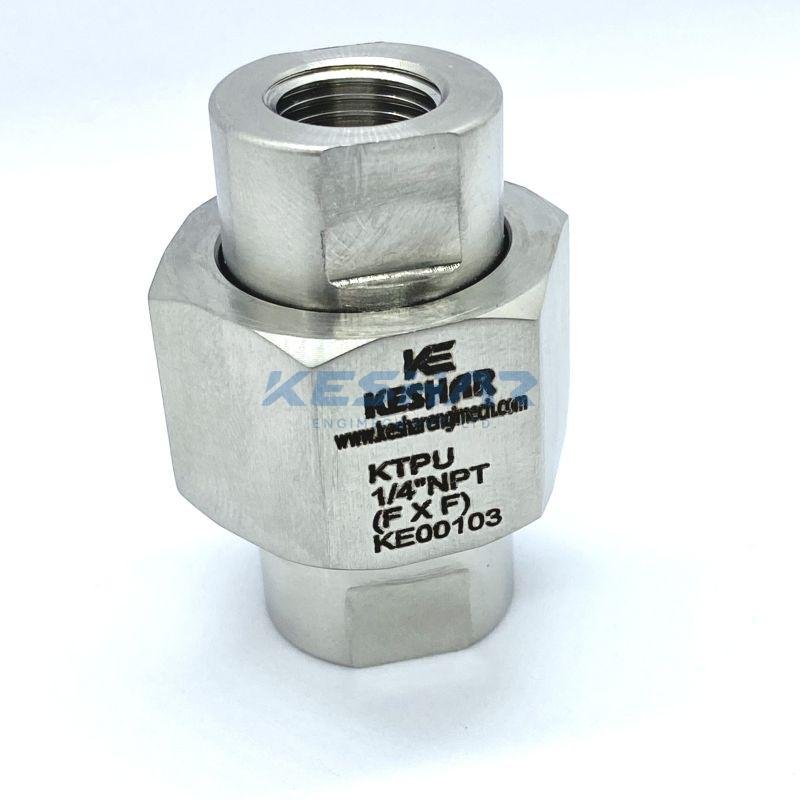

A 3 PCS Union is a three-piece pipe union designed to provide a secure, leak-proof, and easily detachable connection between two sections of pipe or tubing. It consists of three components—a male end, a female end, and a union nut—that allow quick assembly and disassembly without rotating the connected pipes. This design simplifies maintenance, inspection, and replacement of piping components while ensuring a reliable pressure-tight seal.

Manufactured from premium-grade SS 316, SS 316L, SS 304, carbon steel, brass, or alloy steel, 3 PCS Unions offer excellent corrosion resistance, high mechanical strength, and durability. Precision-machined threads and sealing surfaces ensure dependable performance under high-pressure and high-temperature conditions, making them ideal for instrumentation, hydraulic, pneumatic, and industrial process applications.

• Product Type: 3 PCS Union
• Material: SS 316 / SS 316L / SS 304 / Brass / Carbon Steel / Alloy Steel
• Construction: Three-Piece Union
• Connection Type: Female x Female Thread
• Thread Type: BSP / BSPT / NPT
• Size Range: 1/8" to 2"
• Pressure Rating: Up to 6000 PSI
• Temperature Range: -54°C to 400°C
• Seal Type: Metal-to-Metal / PTFE Seal (Optional)

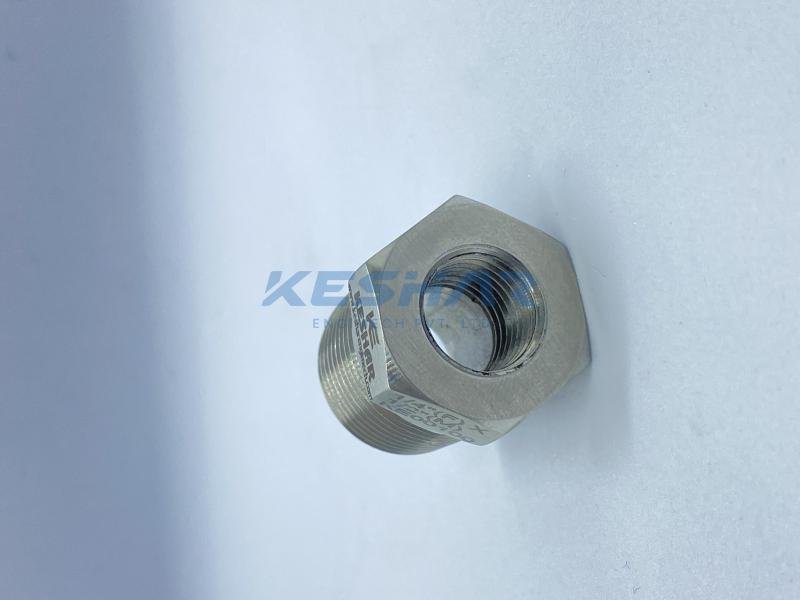

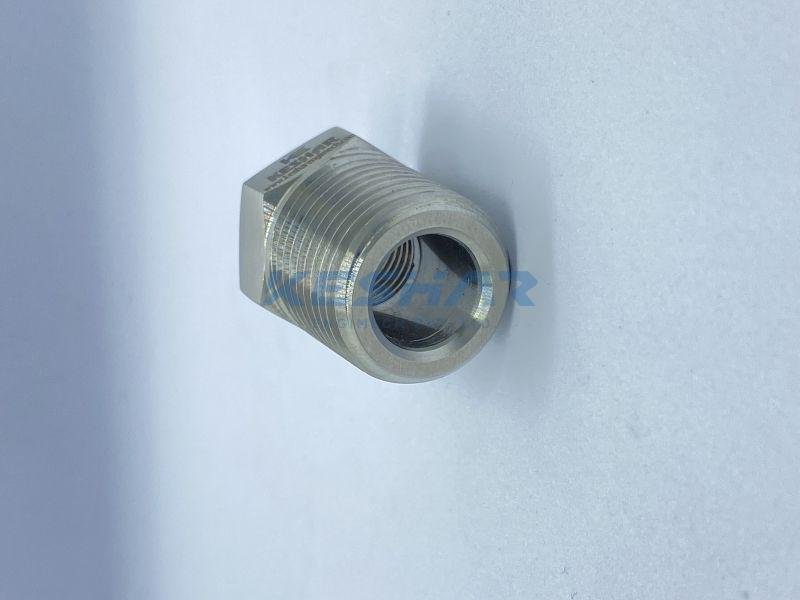

Instrumentation Reducing Bush is a precision-engineered threaded pipe fitting designed to connect two female-threaded components of different sizes. It features a larger external male thread and a smaller internal female thread, allowing the reduction of pipe or fitting sizes while maintaining a secure, leak-proof connection. The compact design enables smooth flow transition and efficient space utilization in high-pressure instrumentation and process piping systems.

Manufactured from premium-grade SS 316, SS 316L, SS 304, carbon steel, brass, duplex stainless steel, Monel, Hastelloy, or alloy steel, Instrumentation Reducing Bushes offer excellent corrosion resistance, high mechanical strength, and long service life. Precision-machined threads ensure accurate engagement and dependable sealing under demanding industrial conditions.
