| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | KESHAR |
| Material | Steel, Stainless Steel |
| Automation Grade | Manual |
| Click to view more | |
Product Details
Application
Gas Fitting, Oil Fitting, Instrumentation
Industrial Use
Fuel, Gas, Water
Size
1.1/2inch, 1.1/4inch, 1/2inch, 1inch, 3/4inch, 5/6inch, Standard
Certification
ISO 9001:2015
Country of Origin
India
Shape
Round
Pressure
High Pressure
Type
Instrumentation
Delivery Time
1 week

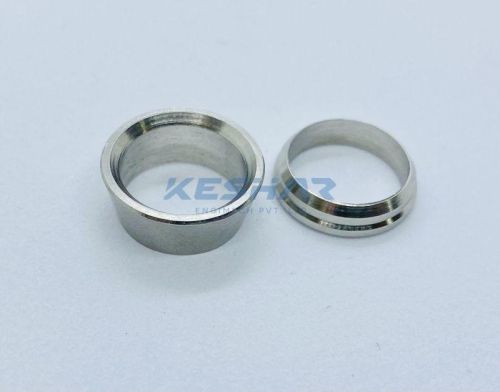

Front & Back Ferrules are precision-engineered components used in double ferrule compression tube fittings to create a secure, leak-proof, and vibration-resistant connection in instrumentation systems. The front ferrule forms the primary seal between the fitting body and the tubing, while the back ferrule grips the tube firmly, providing mechanical support and preventing tube pull-out. Together, they ensure reliable sealing and superior performance under high-pressure and high-temperature operating conditions.
Manufactured from premium-grade SS 316, SS 316L, SS 304, brass, or other corrosion-resistant alloys, Front & Back Ferrules are precision machined to provide consistent sealing, excellent tube grip, and long service life. Their advanced design minimizes installation torque, enhances reusability, and maintains tubing integrity, making them ideal for critical instrumentation, hydraulic, pneumatic, and process control applications.
Technical Details:
- Product Type: Front & Back Ferrule
- Material: SS 316 / SS 316L / SS 304 / Brass
- Type: Double Ferrule Compression System
- Compatible Tube Size: 1/16" to 2" (2 mm to 50 mm)
- Tube Material: Stainless Steel, Copper, Alloy Steel, and other compatible tubing
- Working Pressure: Up to 10,000 PSI
- Temperature Range: -54°C to 400°C
- Finish: Precision Machined, Passivated
