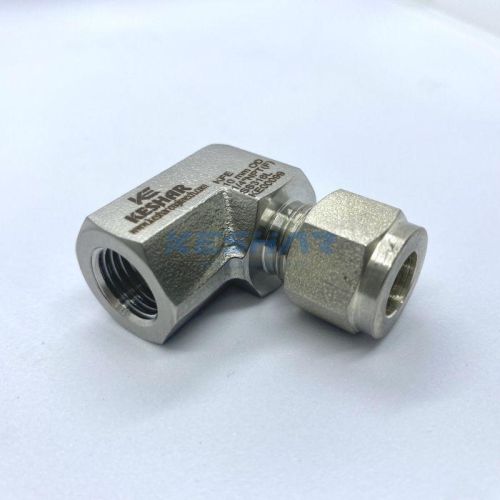

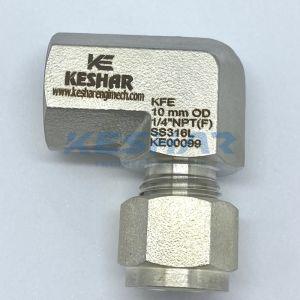

Instrumentation Tube Female Elbow

Instrumentation Tube Female Elbow is a precision-engineered compression fitting designed to connect instrumentation tubing to a female threaded port at a 90° angle. It provides a secure, leak-proof connection while allowing smooth directional change of fluid or gas flow in instrumentation, hydraulic, pneumatic, and process control systems. The double ferrule compression design ensures excellent tube grip, vibration resistance, and dependable sealing under high-pressure operating conditions.

Manufactured from premium-grade SS 316, SS 316L, SS 304, brass, or duplex stainless steel, Instrumentation Tube Female Elbows are engineered for superior corrosion resistance, mechanical strength, and long service life. Their compact design simplifies tubing installation in confined spaces while maintaining system integrity and reducing potential leak points. These fittings are widely used in critical industrial applications where safety, precision, and reliability are essential.

• Product Type: Instrumentation Tube Female Elbow
• Material: SS 316 / SS 316L / SS 304 / Brass / Duplex Stainless Steel
• Connection Type: Tube x Female Thread (90° Elbow)
• Tube Size (OD): 1/8" to 1"
• Female Thread Size: 1/8" to 1"
• Thread Type: NPT / BSP / BSPT
• End Connection: Double Ferrule Compression x Female Thread
• Working Pressure: Up to 10,000 PSI
• Temperature Range: -54°C to 400°C
