| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | KESHAR |
| Size | 3/4inch, 1inch, 1/2inch, 1.1/4inch, 1.1/2inch, Standard |
| Material | Stainless Steel |
| Click to view more | |
Product Details
Certification
ISI Certified, ISO 9001:2015
Country of Origin
India
Color
GREY
Type
Instrumentation
Pressure
High Pressure

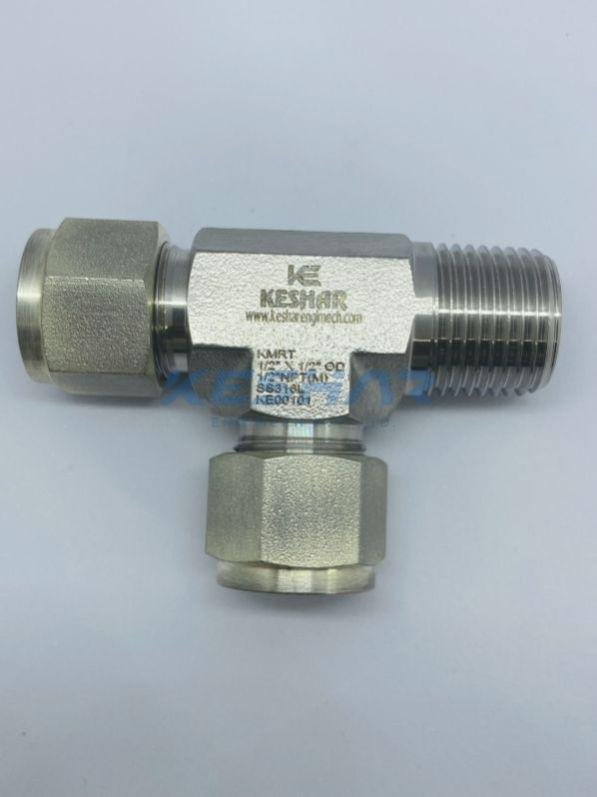

A Male Run Tee is a specialized tube fitting designed to connect three lines, where the run (straight path) has male threaded ends and the branch provides an outlet for flow diversion. It is widely used in instrumentation and piping systems for branch connections while maintaining a secure threaded joint.
Manufactured using high-quality materials such as SS304, SS316, and SS316L, male run tees offer excellent corrosion resistance, high pressure handling, and long service life in demanding industrial environments.
Technical Specifications (Typical)
- Material: SS304 / SS316 / SS316L / Brass
- Size Range: 1/8" to 1" (or as required)
- End Connection: Male Thread (NPT/BSP) + Compression / Female
- Type: Male Run Tee
- Pressure Rating: Up to 6000 PSI
- Temperature Range: -20°C to 450°C
Applications
- Instrumentation tubing systems
- Hydraulic and pneumatic lines
- Oil & gas pipelines
- Chemical and process industries
